hillsville Posted November 1, 2015 Report Share Posted November 1, 2015 Hi,I use EIAS 9.1 and FormZ for modeling.I'm trying to render out a wireframe image -- and camera crashes.What am I missing? Quote Link to comment Share on other sites More sharing options...
Tomas Egger Posted November 1, 2015 Report Share Posted November 1, 2015 Ola!please, collect a simple project and zip the file.upload here or send in my email, I guess the FormZ export have some issue, since Camera is not supposed to crash in wireframe mode.thankstom Quote Link to comment Share on other sites More sharing options...

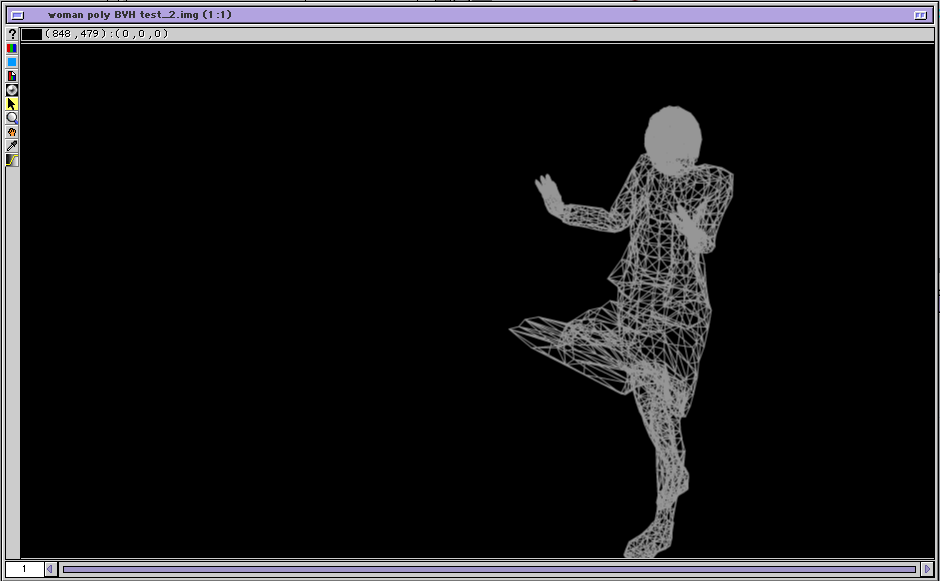

Tomas Egger Posted November 1, 2015 Report Share Posted November 1, 2015 Ola,Just rendered a wireframe here.. everything fine, my guess, a bad geometry exported from FormZ.ThanksTom Quote Link to comment Share on other sites More sharing options...
hillsville Posted November 5, 2015 Author Report Share Posted November 5, 2015 ...what software do you create your models? Quote Link to comment Share on other sites More sharing options...

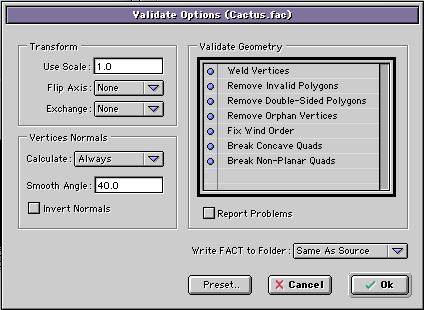

Tomas Egger Posted November 5, 2015 Report Share Posted November 5, 2015 Ola Gabe!Several, Silo, FormZ, EIM..You need to test a few export options in FormZ and see if its one which is exporting a bad geometry version, it works fine with Phong render?Did you try in the Animator Menu bar / Object / Export Object / Validated FACT? it will export and re-import automatically your model to fix bad geometry, don't forget to change the Calculate Pop-up to Always, it will fix your normals.ThanksTom Quote Link to comment Share on other sites More sharing options...

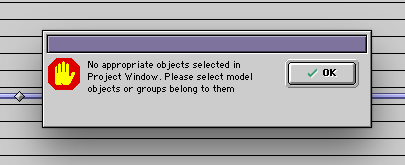

hillsville Posted November 7, 2015 Author Report Share Posted November 7, 2015 Hi,Thanks for the insight. I tried it on a FormZ fact export and FormZ .dxf export. See dialogue box for both? Quote Link to comment Share on other sites More sharing options...
Tomas Egger Posted November 7, 2015 Report Share Posted November 7, 2015 Ola Gabe!You need to chose only Validated FACT.second, try to find which options in the FormZ Fact export are making the bad geometry.thankstom Quote Link to comment Share on other sites More sharing options...
hillsville Posted November 8, 2015 Author Report Share Posted November 8, 2015 Hi,I did get it to work -- thank you. I also retried it on the .dxf file -- and for the first time I was able to have an object follow a .dxf bath from FormZ. However the object was deformed at different points along the path? Quote Link to comment Share on other sites More sharing options...
Tomas Egger Posted November 8, 2015 Report Share Posted November 8, 2015 Ola Gabe!could you post here what you are talking about?thankstom Quote Link to comment Share on other sites More sharing options...
